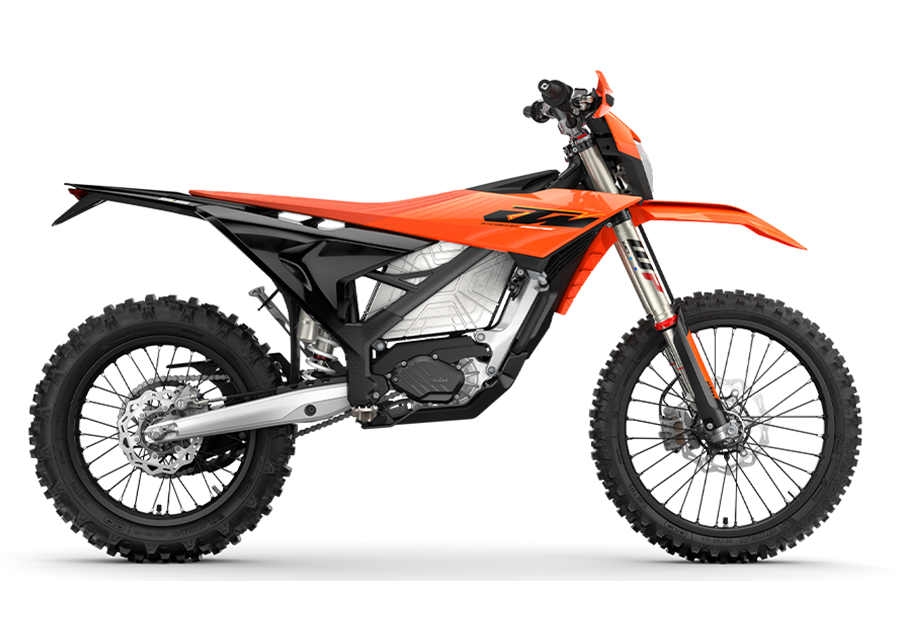

2027 KTM FREERIDE E
2027 KTM FREERIDE E for Sale at Ultimate KTM Ipswich in West Ipswich, QLD | Review Specifications, Features & Information
The all new KTM FREERIDE E brings a fresh surge of energy to electric offroad riding. Lightweight, agile, and near silent, it unlocks new possibilities on trails where traditional bikes can't go. Its powerful new drivetrain delivers instant torque, 19.2 kW peak power, and three adaptable ride modes, while the upgraded 5.5 kWh interchangeable battery offers up to three hours of riding freedom. A newly developed chassis, WP XACT/XPLOR suspension, and road legal capability make it equally ready for remote paths or everyday play.

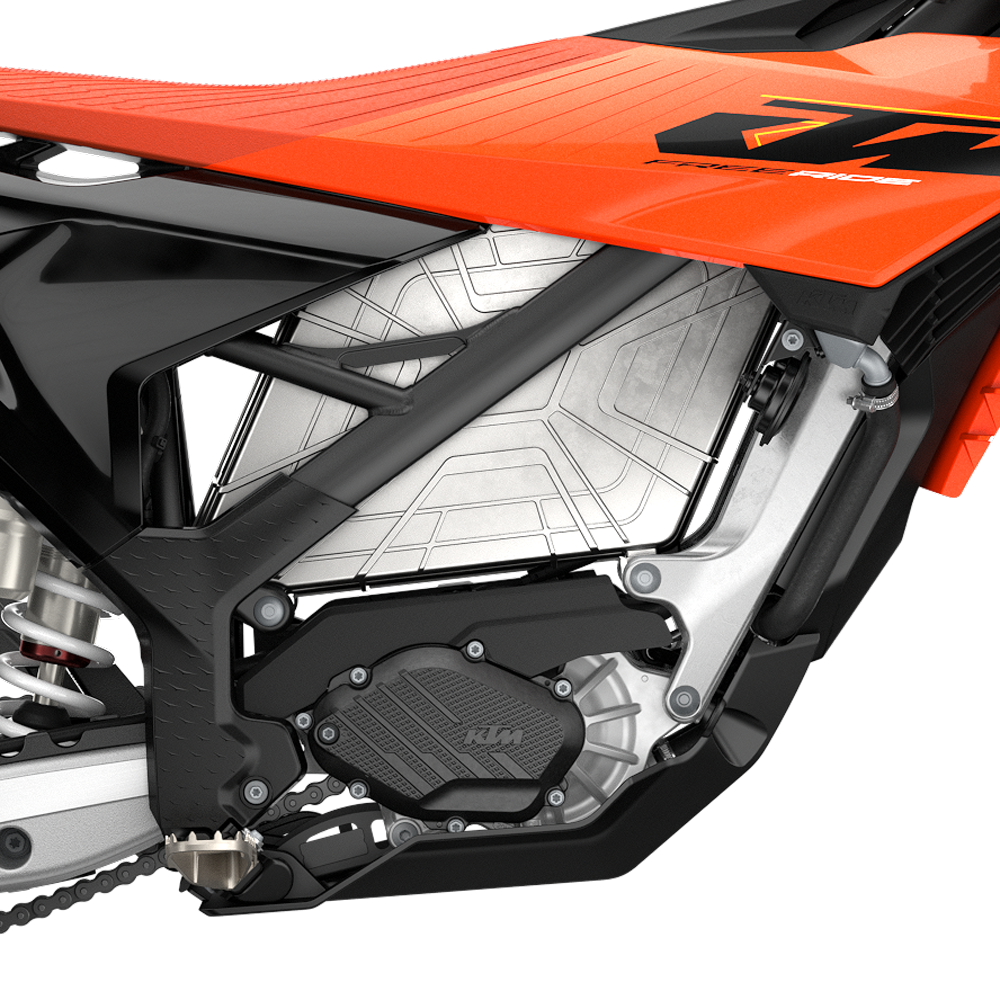

Drivetrain
The KTM FREERIDE E has three ride modes that suit specific scenarios or performance parameters. Each setting changes the torque and power delivery. Three recuperation settings can be engaged to assist with maximum engine efficiency and battery life: OFF, MID, and HIGH. These can be selected against a specific mode to ensure flexibility with the power package of the KTM FREERIDE E. The ergonomic four-button switch cube on the left handlebar can easily activate the ride modes and other options.
Suspension
BRAKTEC systems deliver fantastic results with a 260 mm front disc and 220 mm on the rear. Mounting of both front and rear brakes on the NEKEN handlebars is one of the key differences from other motorcycles in the KTM portfolio. The ability to operate both forms of stopping power with two hands allows the user to concentrate more on body stance and foot position.
Frame
BRAKTEC systems deliver fantastic results with a 260 mm front disc and 220 mm on the rear. Mounting of both front and rear brakes on the NEKEN handlebars is one of the key differences from other motorcycles in the KTM portfolio. The ability to operate both forms of stopping power with two hands allows the user to concentrate more on body stance and foot position.
Ride Modes
The KTM FREERIDE E has three ride modes that suit specific scenarios or performance parameters. Each setting changes the torque and power delivery. Three recuperation settings can be engaged to assist with maximum engine efficiency and battery life: OFF, MID, and HIGH. These can be selected against a specific mode to ensure flexibility with the power package of the KTM FREERIDE E. The ergonomic four-button switch cube on the left handlebar can easily activate the ride modes and other options.
Display
The KTM FREERIDE E has three ride modes that suit specific scenarios or performance parameters. Each setting changes the torque and power delivery. Three recuperation settings can be engaged to assist with maximum engine efficiency and battery life: OFF, MID, and HIGH. These can be selected against a specific mode to ensure flexibility with the power package of the KTM FREERIDE E. The ergonomic four-button switch cube on the left handlebar can easily activate the ride modes and other options.
| Technical Specifications | |
| Specification | Detail |
| Engine | |
| Electric motor | 50,4 V - PMSM |
| Max. power | 19,2 kW |
| Torque | 37.6 Nm |
| Max. motor speed | 12000 rpm |
| Battery capacity | 110 Ah |
| Charging time 100% | 480 min. |
| Rated output | 8,3 kW |
| Secondary gear ratio | 13:50 |
| Traction battery | MX50 Lithium-Ion Battery |
| Charger line voltage | 90 - 265 V / 50 - 60 Hz |
| Charging power | 660 W |
| Charging time 80% | 360 min. |
| Chassis | |
| Frame design | Chrome-molybdenum steel frame |
| Rear subframe design | Aluminium / Polyamide Glass Fiber |
| Handlebar | Pro Taper, Aluminium Ø 28/22 mm |
| Front brake | Disc brake |
| Rear brake | Disc brake |
| Front brake disc diameter | 260 mm |
| Rear brake disc diameter | 220 mm |
| Wheels | 1.60 x 21"; 2.15 x 18" |
| Tyre width (front) | 90 |
| Tyre height (front) | 90 |
| Tyre width (rear) | 120 |
| Tyre height (rear) | 90 |
| Tyre dimensions (front/rear) | 90/90; 120/90 |
| Chain | 520, Non-sealed |
| Steering head angle | 65.6° |
| Suspension | |
| Front suspension | WP XACT USD Fork |
| Rear suspension | WP XPLOR shock absorber with PDS |
| Suspension travel (front) | 250 mm |
| Suspension travel (rear) | 240 mm |
| Steering head angle | 65.6° |
| Fork offset | 20 mm |
| Dimensions | |
| Seat height | 910 mm |
| Weight (without fuel) | 112 kg |
| Wheelbase | - |
| Ground clearance | 360 mm |
