Home / Bikes /Supersport / 2024 RC 390

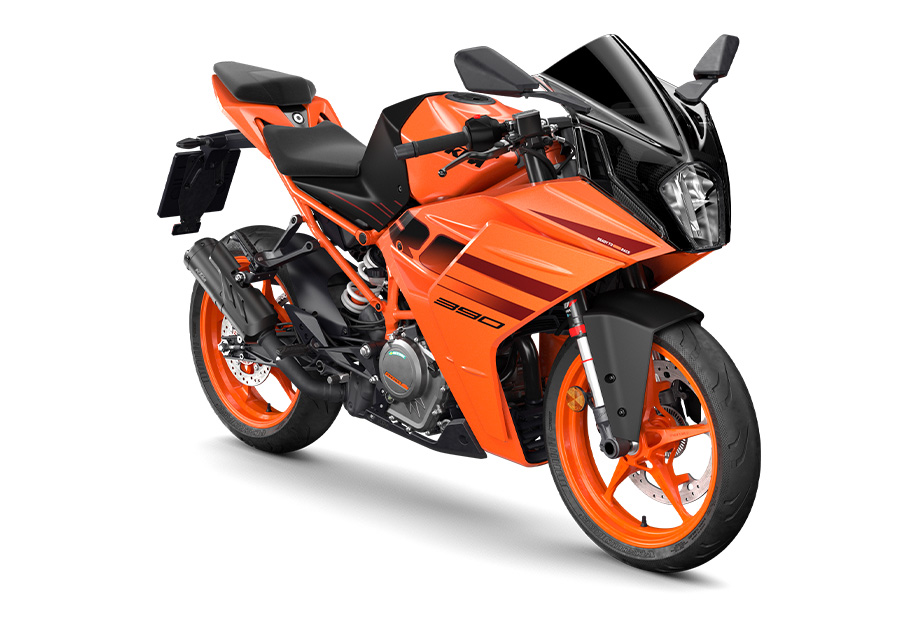

2024 RC 390

ktm-2024-rc-390
2024 KTM RC 390 for Sale West Ipswich, QLD | Review Specifications, Features & Information

2024 KTM RC 390 for Sale West Ipswich, QLD | Review Specifications, Features & Information

RACE-BRED PERFORMANCE

The 2024 KTM RC 390 is a high-performance Supersports machine with its roots firmly planted on the race track. Featuring an impressive technology package, as well as race-derived styling, handling characteristics, and addictive power delivery, the KTM RC 390 is a real-world racer with undoubted pedigree.

2024 KTM RC 390

2024 KTM RC 390

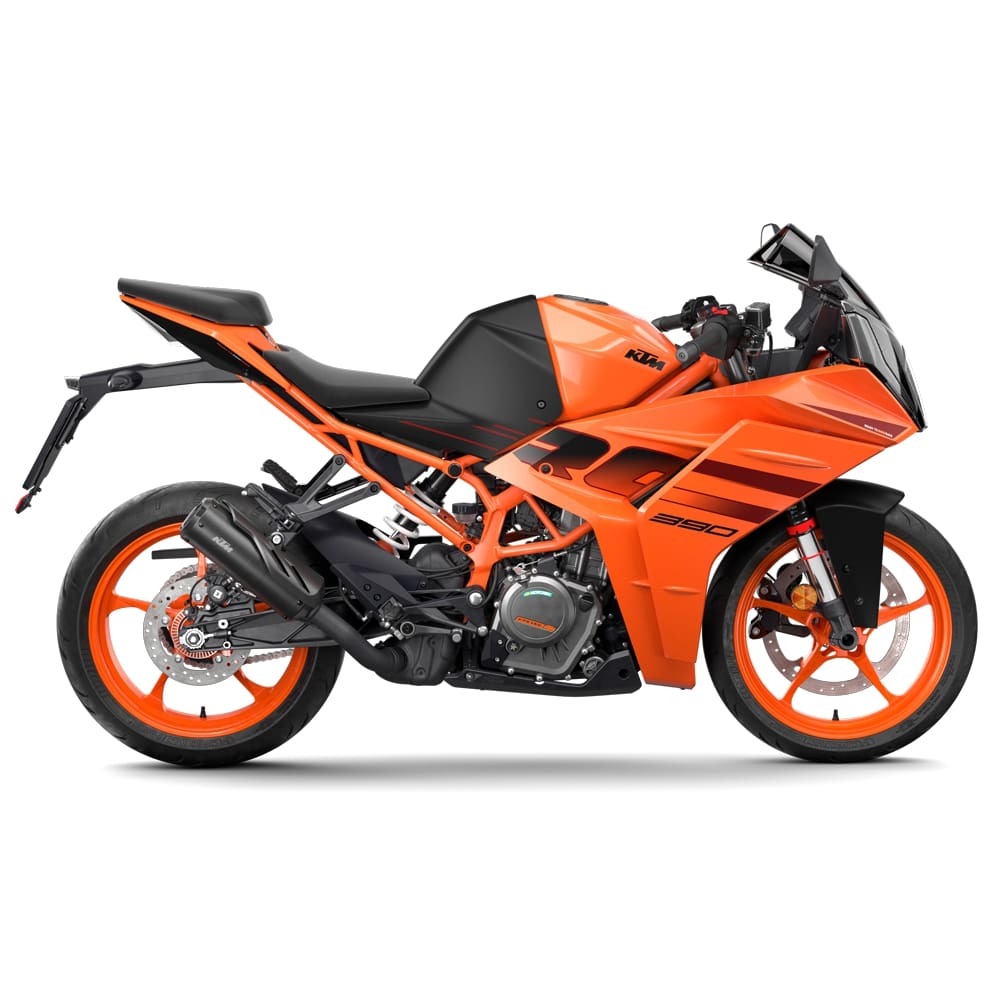

FRAME

FRAME

A new, ultra-lightweight framework saves 1.5 kg over the previous generation, making use of a trellis frame and bolt-on subframe, which also gives the KTM RC 390 improved high-speed stability and increased rider feel. The result? Faster lap times.

SUSPENSION

SUSPENSION

The KTM RC 390 makes use of a completely new suspension setup, giving it real race-bike credibility with unmatched specifications in the sub-400 cc Superpsports segment.

FRONT FORK

FRONT FORK

Boasting a 43 mm WP APEX open cartridge, adjustable upside down front fork with 30 clicks of compression and rebound damping adjustment, the KTM RC 390 not only shares proper sportsbike technology with bigger bikes, but it also handles like them too. New axle clamps and a hollow axle save weight up front too.

REAR SHOCK ABSORBER

REAR SHOCK ABSORBER

Tuning your KTM RC 390 to be the perfect track day tool is easy, thanks to a new rebound and preload adjustable split-piston WP APEX shock absorber taking care of things in the rear.

BRAKES

BRAKES

Reigning in a charging KTM RC 390 comes courtesy of radially mounted 4 piston fixed caliper BYBRE combined with a 320 mm brake disk upfront, and a single piston fixed caliper with 230 mm disc brake setup on the rear wheel. Not only do these provide the best possible deceleration, they save 960 grams of weight and can be fully exploited thanks to state-of-the-art ABS technology. An adjustable front brake lever completes the package.

WHEELS

WHEELS

An all-new five spoke wheel design features fewer spokes and open hubs, which not only greatly improves handling characteristics, but most importantly, saves a massive 3.4 kg of rotating unsprung mass. This means quicker turn-in on track and improved durability on the street, making the KTM RC 390 an all out apex clipping master.

PERFORMANCE

PERFORMANCE

Thanks to a larger airbox, increased torque, and ultra-slick throttle response, the KTM RC 390 rockets off the line and into pole position. A new Ride-by-Wire system also means it steps onto the podium with more precise engine mapping, traction control, and the added benefit of optional Quickshifter+.

EXHAUST

EXHAUST

Taking its design cues from the MotoGPâ„¢ RC16, the exhaust of the KTM RC 390 boasts stainless steel headers with an aluminum muffler, which not only look the part but give the KTM RC 390 a distinct, throaty rumble as it charges through the gears and onto the redline.

SLIPPER CLUTCH

SLIPPER CLUTCH

Preventing the rear wheel from locking up under hard deceleration, the slipper clutch opens up when the engine back-torque becomes too high, but it also closes with the force of the clutch springs when you get onto the throttle. This stops unwanted rear wheel chatter and ensures maximum control - while also allowing the clutch lever to be actuated with hardly any pressure at all.

ENGINE

ENGINE

The KTM RC 390 uses the proven 373 cc liquid-cooled, single-cylinder four-stroke engine to maximum effect. Revised engine mapping, improved torque figures, and smoother, hard-hitting power delivery means this state-of-the-art powerplant churns out unmatched performance.

CORNERING ABS

CORNERING ABS

The KTM RC 390 is equipped with Cornering ABS to ensure maximum braking performance under all conditions. This allows riders to use the full power of the BYBRE brakes when navigating a corner by taking the lean angle of the motorcycle into account, reducing the chance of locking up a wheel mid-corner.

SUPERMOTO ABS MODE

SUPERMOTO ABS MODE

The KTM RC 390 can let it all hang out, thanks to SUPERMOTO ABS. This mode allows the rider more freedom when it comes to hard braking, without compromising on safety. This is done by deactivating ABS functionality on the rear wheel which allows the rider to slide the rear into a corner. At the same time, rear wheel lift up detection is also disabled allowing the rear wheel to lift up, but keeping brake pressure on the front until an excessive front wheel slip is detected, at which point ABS will intervene. This also means the rider can apply more brake pressure when cornering or trail braking.

QUICKSHIFTER+

QUICKSHIFTER+

Shift like a pro with the KTM RC 390 and KTM's optional QUICKSHIFTER+, allowing you to gear up or down without using the clutch lever. This means quicker shift times, improved rear wheel traction, smoother acceleration and the distinct racetrack sound. This works by cutting the ignition at the moment the shift lever moves up or down, unloading the gearbox, and making it possible for you to switch one gear up without closing the throttle.

TFT DISPLAY & SWITCHGEAR

TFT DISPLAY & SWITCHGEAR

An all-new TFT dashboard lets you see all the important information you need at a glance, or allows you to customize what you want to see via intuitive switchgear. The adaptive ambient light sensor also means the display adjusts to changing light conditions automatically, so that you maintain perfect visibility, day or night.

Motorcycle Traction Control (MTC)

Motorcycle Traction Control (MTC)

Complete confidence at any angle, Motorcycle Traction Control reacts in a matter of milliseconds if the rotational speed of the rear wheel is disproportionate to the riding situation. MTC reduces the engine output with an extremely smooth, barely perceptible intervention at the throttle valves, reducing slippage to optimum proportions. This means riders can enjoy the full power of the KTM RC 390 under all circumstances, on track and on the road.

ENGINE

  • Torque

    37 Nm

  • Transmission

    6-speed

  • Cooling

    Liquid cooled

  • Power in kw

    32 kW

  • Starter

    Electric starter

  • Stroke

    60 mm

  • Bore

    89 mm

  • Clutch

    PASC(TM) antihopping clutch, mechanically operated

  • CO2 Emissions (Bike)

    81 g/km

  • Displacement

    373 cm3

  • EMS

    Bosch EMS with RBW

  • Design

    1-cylinder, 4-stroke engine

  • Fuel Consumption

    3.46 l/100 km

  • Lubrication

    Wet sump

CHASSIS

  • Tank capacity (approx.)

    13.7 l

  • ABS

    Bosch 9.1MP Two Channel ABS (Supermoto ABS)

  • Front brake disc diameter

    320 mm

  • Rear brake disc diameter

    230 mm

  • Front brake

    Four-piston radial fixed caliper, brake disc

  • Rear brake

    Single-piston floating caliper, brake disc

  • Chain

    520 X-Ring

  • Dry Weight

    155 kg

  • Frame design

    Steel trellis frame, powder coated

  • Front suspension

    WP APEX 43

  • Ground clearance

    158 mm

  • Rear suspension

    WP APEX - Monoshock

  • Seat height

    824 mm

  • Steering head angle

    66.5 °

  • Suspension travel (front)

    120 mm

  • Suspension travel (rear)

    150 mm

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
