890 DUKE R 2020
KTM 890 DUKE R 2020 for Sale at Ultimate KTM Ipswich in West Ipswich, QLD | Specifications and Review Information
THE SUPER SCALPEL
Still agile, but with more punch, the KTM 890 DUKE R takes all the things we love about the KTM 790 DUKE and turns it up to 11. This is a no-compromise mid-weight naked bike, equally at home on mountain roads as it is on the race track, delivering more power, more torque and more dukeness than any parallel twin that has come before.

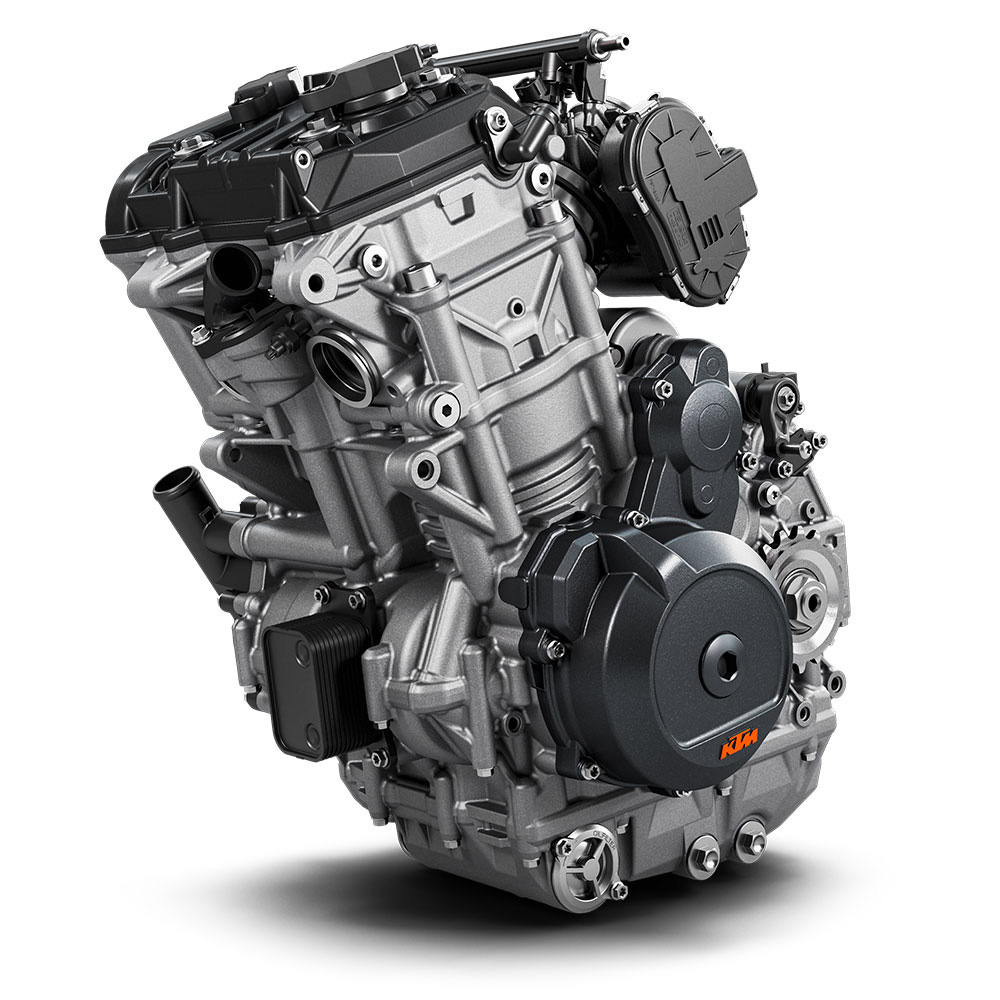

Developed from the same parallel twin that powers the KTM 790 DUKE, the KTM 890 DUKE R engine has been worked into a fire-breathing, high-performance midweight titan. With its increased bore and stroke, higher compression and higher max. RPM limit, the KTM 890 DUKE R churns out an impressive 121 HP and 99 Nm.
The KTM 890 DUKE R features horizontally split, high pressure cast aluminum crankcases, allowing for reduced wall thickness and weight. A heavier crankshaft and flywheel setup also helps to pump up torque.
Developed specifically for KTM by DELL'ORTO, new sensors in each throttle body measure the manifold pressure and adjust the mixture accordingly per cylinder, improving throttle response and smoothing out throttle action for more precise throttle inputs.
A new cylinder head has been developed specifically for the KTM 890 DUKE R to accommodate a set of larger 37 mm intake and 30 mm exhaust valves, while the camshafts feature increased lift and a more aggressive profile. A new balancer shaft has also been added to match the increased RPM and increased rotating mass.
The slipper clutch allows riders to enter corners confidently without locking up the rear wheel under hard deceleration or when downshifting, while remaining feather-light on the clutch finger.
Ride By Wire
Ride-by-wire processes throttle inputs with the help of electronic sensors and activates the throttle valves, electronically translating the throttle commands of the rider into the best throttle valve positions for the current riding situation. All this means more control when attacking the twisties.
The KTM 890 DUKE R features horizontally split crankcases, made from high-pressure cast aluminum, allowing for thinner wall thickness and added weight saving. The crankcases on the KTM 890 DUKE R have also been re-engineered to allow for the longer stroke over the KTM 790 DUKE.
Two forged box pistons featuring three piston rings and a bronze conrod bearing work in tandem to power the beating heart of the KTM 890 DUKE R. Thanks to the box construction, piston weight is reduced by 10 grams compared to the pistons in the KTM 790 DUKE engine, despite the larger bore.
A stainless-steel thing of beauty. The middle damper centralizes mass and allows for a relatively small muffler that plays a dramatic soundtrack. Hundreds of test bench runs and complex simulations ensured that this exhaust system contributes decisively to the tractable torque curve and excellent emission standards.
Just like the KTM 790 DUKE, the KTM 890 DUKE R's handling characteristics are thanks to the dynamic, loadbearing design of the tubular chassis, which allows it to carve through twisty tracks and mountain passes with extreme responsiveness. Just like every other KTM R, the frame is painted orange to highlight its sporty credentials.
The subframe is cast aluminum and houses the airbox. No plastic covers, no additional brackets - everything is cast into two connected pieces to reduce complexity and weight. The triangular shapes in the subframe allow for a stronger, stiffer construction.
The die-cast, open-lattice swingarm is optimized for stiffness but features a steeper angle for increased stability as well as excellent flex characteristics. This makes the KTM 890 DUKE R every bit as sharp as you'd expect it to be.
Adapted to suit the added power of the KTM 890 DUKE R but still retaining the signature DUKE agility, the adjustable suspension on the KTM 890 DUKE R has been fettled to be sportier with improved high-speed stability, while retaining real-world street riding comfort.
The KTM 890 DUKE R features adjustable linear spring WP APEX front forks with split function damping, compression and rebound settings. This allows riders to perfectly sharpen their preferred setup for track or the street.
Triple clamp stiffness has been tuned to match the flex of the fork, contributing to sporty handling and excellent feedback. An aluminum steering stem has been used instead of steel, as on the KTM 790 DUKE, to reduce the overall weight.
A fully adjustable WP APEX shock takes command at the rear of the bike, with high and low speed compression settings, as well as rebound adjustment. A hydraulically adjustable preload adjuster allows for quick and easy tuning on the fly.
The KTM 890 DUKE R comes with extremely lightweight, light-alloy wheels finished in signature 'R' orange as standard. This not only drops the overall weight of the bike, but also minimizes the unsprung masses and aids in faster turn-in and reduced rolling resistance.
Getting the KTM 890 DUKE R to really stick to the tarmac is a set of MICHELIN Powercup II hypersport tires. These are state-of-the-art in terms of tire development, offering fantastic grip on track or on the street in all conditions.
Developed with high performance street and track riding in mind, the KTM 890 DUKE R is fitted with the best brakes in the business. Brembo Stylema monoblock calipers and lighter 320 mm floating disks upfront ensure sharp and precise brake feel, while slowing down from speed. These are further enhanced by a Brembo MCS master cylinder, which allows the rider to adjust the lever ratio and brake feel. Overall, 1.2 kg of unsprung mass has been saved compared to the KTM 790 DUKE.
The tapered aluminum handlebars are positioned flatter, lower and further forward to increase feeling from the front tire and give the KTM 890 DUKE R a racier riding position. Riders can also tailor their preferred reach with three rotational adjustments and 4 positions of fine-tuning on the triple clamp.
At 840 mm, the KTM 890 DUKE R sits higher than the KTM 790 DUKE to give it a meaner stance, but also more lean angle. The pillion seat comes as standard with the DUKE's signature cover to give the KTM 890 DUKE R a sharper, racier look.
The KTM 890 DUKE R features completely new foot pegs, which are positioned higher and further back for a sportier riding position and greater lean angles. Reverse race shifting is also possible without any additional parts.
The KTM 890 DUKE R casts an intimidating shadow thanks to its menacing profile and ultrasharp lines. In the metal, however, it's obvious that this DUKE means business. Compact proportions, loud graphics and a bright orange frame are all unapologetically KTM R.
Just like the KTM 790 DUKE, the KTM 890 DUKE R gets a 14 litre steel tank, perfectly profiled to accommodate aggressive and relaxed riding styles.
A high-quality application process has been used to ensure the signature 'R' graphics on the KTM 890 DUKE R demand respect. Contrasting orange on white sets it apart from anything else in the mid-weight title fight.
The LED headlights on the KTM 890 DUKE R combine optimal near-field illumination with maximum light output. Daytime running lights ensure that other road users see you coming, which you undoubtedly will be doing at speed.
A multicolor combination of relevant information, presented in an uncluttered way. As you rev the engine, the display bars change color, either spurring you on or warning you that the engine's still cold. The display also automatically adapts its illumination to the ambient light. On the KTM 890 DUKE R, anti-wheelie and ABS modes are shown in the display.
For KTM, electronic rider aids are a way to provide more control, performance and fun. Riders can choose from four ride modes, namely: Sport for more aggressive riding, Street for comfortable urban riding, Rain for when things get a little slippery, and the ultimate attack mode - Track.
For KTM, electronic rider aids are a way to provide more control, performance and fun. Riders can choose from four ride modes,
As the name suggests, "Rain mode" is the default safety mode for slippery riding conditions offering maximum traction control, smooth throttle response and reduced power.
The mode for daily riding gives you full power, default throttle control and sufficient traction control suitable for street riding without sacrificing acceleration by cutting power when the front wheel lifts off the deck.
The mode for sporty street riding offers full power, snappier throttle response and less intrusive traction control, which allows some wheelspin. This mode also allows the front wheel to leave the ground without any interference from the traction control, allowing maximum acceleration.
The 890 DUKE R's optional Track mode allows a certain level of customization for riders wanting to choose their own preferences when it comes to throttle control, 9 levels of traction control slip and the ability to switch anti-wheelie mode on or off. MSR is switched off in track mode to allow more control.
Motorcycle Traction Control (MTC) is a mouthful, but it's an important part of the KTM 890 DUKE R. MTC is a lean-angle sensitive traction control system, which reduces engine output with an extremely smooth, barely noticeable intervention to limit wheelslip. Depending on the selected ride mode, MTC also allows for several levels of traction control at the rear wheel.
The KTM 890 DUKE R allows for slick, clutchless up and downshifts thanks to the optional Quickshifter+ system. It reads and responds to your riding under any load to ensure shift action is as fast as you are. When downshifting, the system matches the engine speed to the speed of the lower gear.
Track Mode (Optional)
An optional "Track mode", as the name suggests, offers unlimited thrills and READY TO RACE characteristics. It features a launch control function for quick getaways, variable slip adjustment, increased throttle response and the ability to pull epic wheelies by disengaging anti-wheelie.
Supermoto ABS allows enthusiastic and experienced riders to lock up the rear wheel - a prerequisite for committed Supermoto riding and deliberately executed slides. This means ABS is deactivated on the rear wheel, while maintaining ABS function on the front.
Liquid cooled with water/oil heat exchanger
Power in kw
PASC (TM) antihopping clutch, mechanically operated
CO2 Emissions (Bike)
Bosch EMS with RBW
2-cylinder, 4-stroke, parallel twin
4.74 l/100 km
Forced oil lubrication with 2 oil pumps
Tank capacity (approx.)
Bosch 9.1MP (incl. Cornering ABS and super moto mode)
Front brake disc diameter
Rear brake disc diameter
2 x Brembo Stylema Monobloc four piston, radially mounted caliper
Brembo single-piston fixed calliper, brake disc
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
WP APEX 43
WP APEX - Monoshock
Steering head angle
Suspension travel (front)
Suspension travel (rear)
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country.
The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
